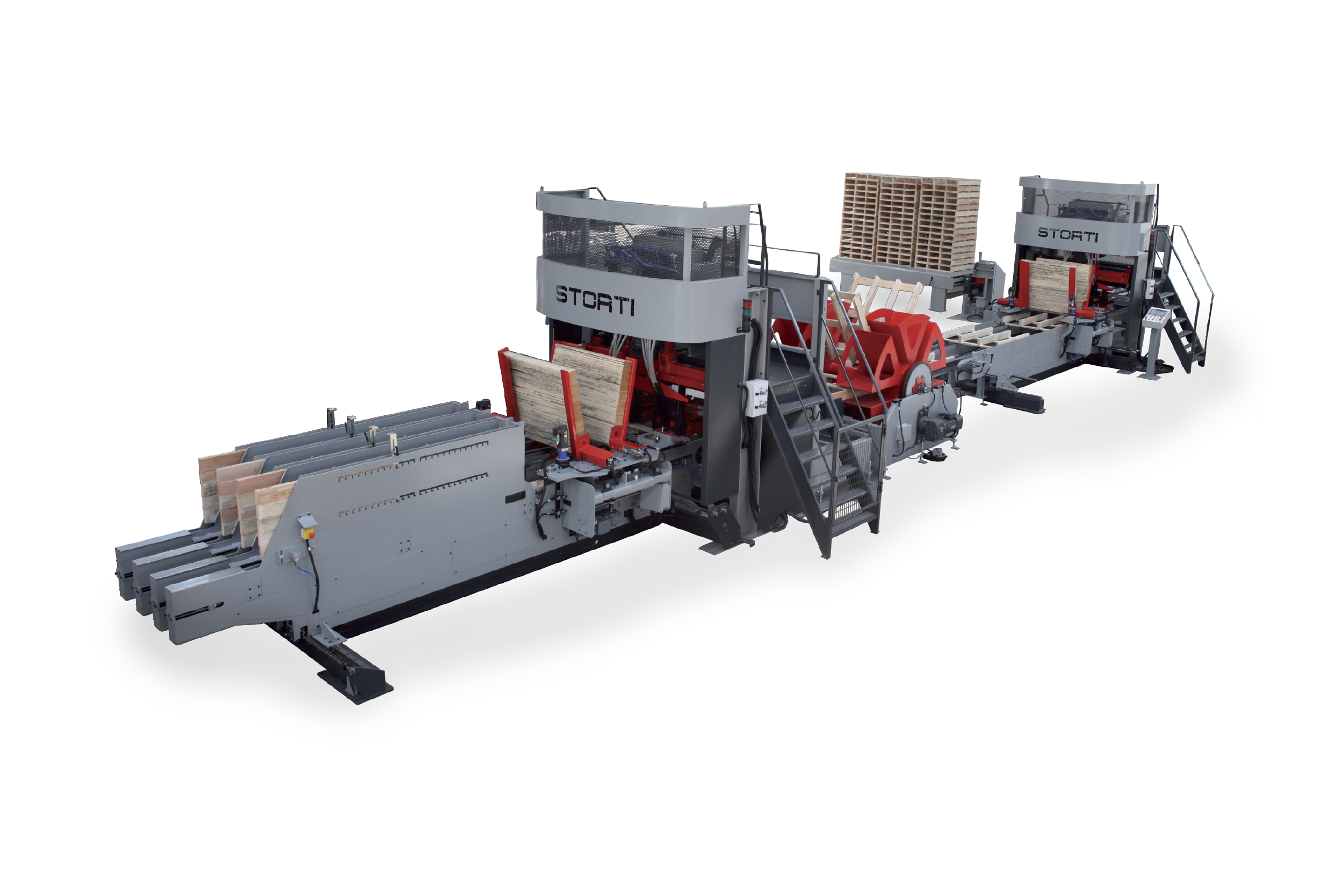

The NEW Standard in Stringer Pallet Assembly

TECHNICAL DATA

Min. stringer length 27.5"
Max stringer length 72"
Min stringer height 2’’
Max stringer height 4.5’’
Min. stringer thickness 1’’
Max. stringer thickness 3’’
Min. stringer spacing on 1’’ thick stringer is 4’’ center to center.
Min. deck board length 27.5’’
Max. deck board length 60’’

Min. deck board thickness 0.375’’
Max. deck board thickness 1’’
Min. deck board width 3’’ Max. deck board width 6’’
Nail length min. 1.18’’– max. 3.93’’
Nail diameter min. 0.099’’– max. 0.177’’
Max pallet wing 0 - 4’’
Number of stringer hoppers 4
Number of board hoppers 2
Number of nailing chucks 12
