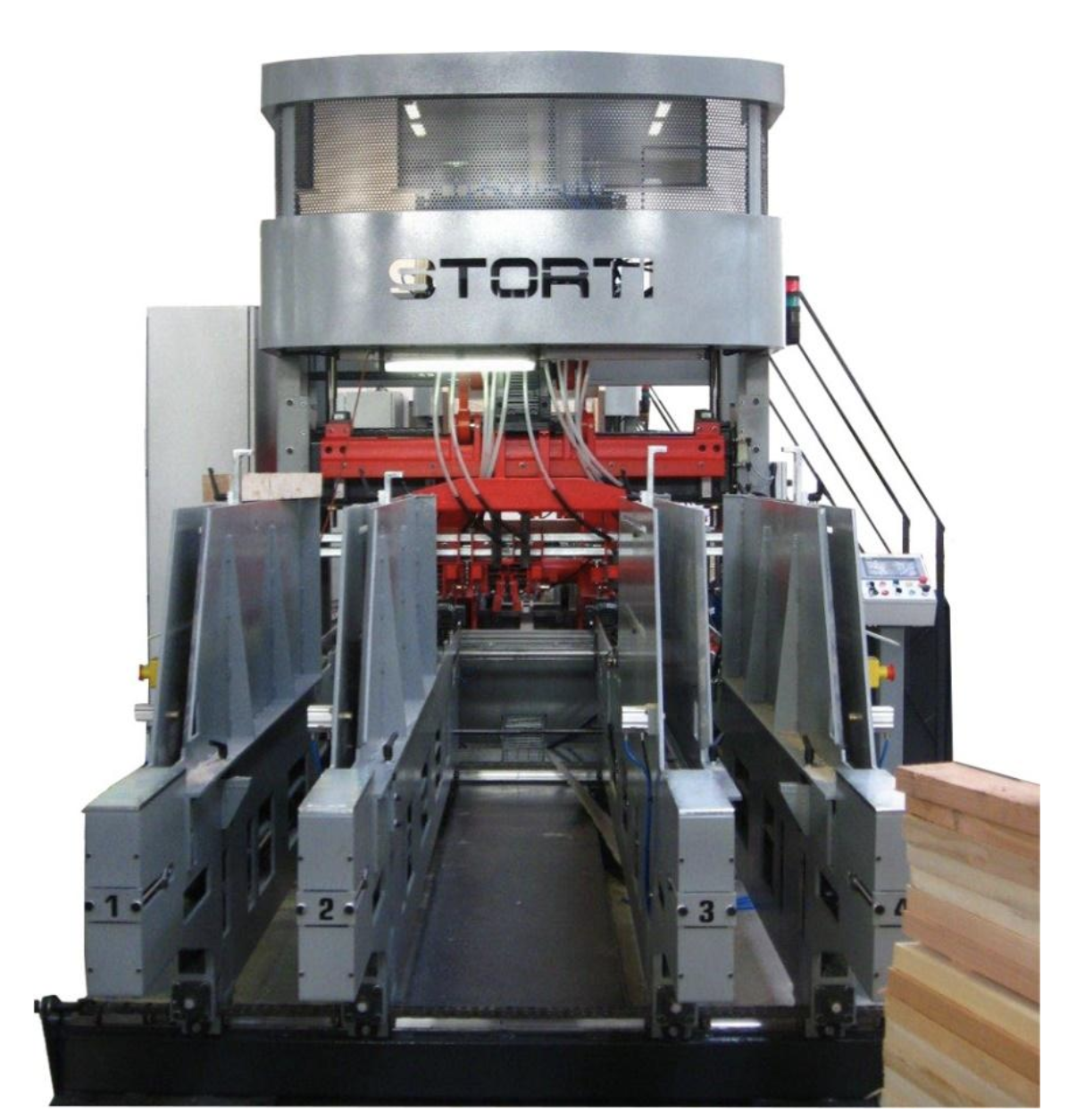

Storti Freedom Flex 41-42 LZ

Storti Freedom Flex 41-42 LZ

0.00

Storti Freedom Flex 41-42 LZ has been manufactured following C.E safety rules and it is supplied with protections around the line. Access gates are equipped with micro switches to stop the line.

Technical data:

Min. stringer length: 27.5” (698.5  mm)
Max stringer length: 72” (1828.8 mm)
Min stringer height: 2” (50.8 mm)
Max stringer height: 4.5” (114.3 mm)
Min. stringer thickness: 1” (25.4 mm)
Max. stringer thickness: 3” (76.2 mm)
Min stringer spacing on 1” (25.4 mm) thick, stringer is 4” (101.6 mm) center to center.

Min. deck board length: 27.5” (698.5 mm)
Max. deck board length: 60” (1524 mm)
Min. deck board thickness: .375” (9,5 mm)
Max. deck board thickness: 1” (25.4 mm)
Min. deck board width: 3” (76.2 mm)
Max. deck board width: 6” (152.4 mm)

Nail length: min. 1.18” (30 mm) – max. 3.93” (100 mm)
Nail diameter: min. 0.09” (2.5 mm) – max. 0.17” (4,5 mm)

Max pallet wing: 0-4” (101.6 mm)

Number of stringer hoppers: 4
Number of board hoppers: 2
Number of nailing chucks: 12
