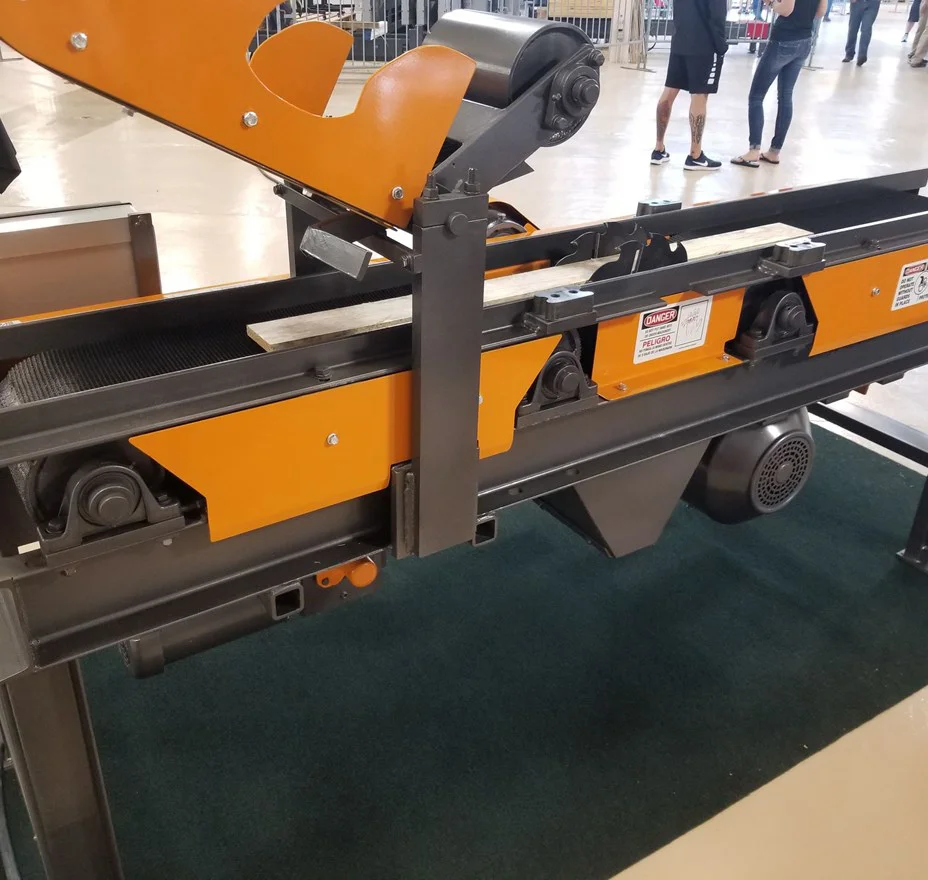

West Plains Mini Edger

West Plains Mini Edger

0.00

Able to clean and rip boards

Add To Cart

Specifications

15 Hp Arbor Motor

1 Hp Feed Motor

2 - 12” X 2 7/16” 12 Tooth Blades

 # 60 Chain

Custom Collar Spacing Available

6” Dust Duct or Removable trap Door to let dust fall onto a drag chain

Overall Length 8’

Length of infeed 30”

Outfeed Length 30”

Take up 9.5” Wide

Edging and Ripping boards

Saw Blade capable of 7 “ Output Width

Minimum 0.75” Width

Minimum thickness 0.5”

Max thickness 1.5”

Two blades max

Capable of taking a notching grooving head (with 20HP Motor Option)

4, 6 and 8 tooth

0.25-0.375” Deep

0.5-1” Notch Width

Optional Variable Frequency Drive for total feed control
